OJT Lifting Analysis for Modular Structure (as per DNV-ST-N001)

For : Civil Engineering

Modular lifting analysis: lift pipe bridges and steel modules in STAAD Pro, per DNV.

8 modules · 29 lessons · 100% online

Part of the OJT Civil Engineer Complete Package · 3 OJT
See Package Options

Mentor: Heru Prasadja, ST

About this OJT

Learn straight from real projects with OJT Lifting Analysis for Modular Structure (as per DNV-ST-N001)

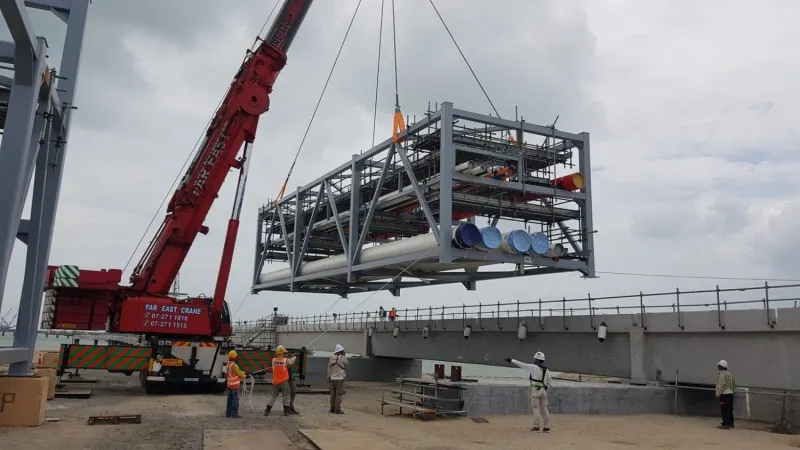

In many cases, to simplify installation on site, steel structures are assembled at the fabrication yard or on site into modular structures (e.g. bridges, pipe bridges), which are then lifted by crane and set in their designated position. Unfortunately, many engineers do not check the strength of the structure during crane lifting, leading to plastic deflection and overstress that permanently damage the structure.

When a structure is lifted, it receives larger loads than in operation. As per DNV-ST-N001, you need to consider the Dynamic Amplification Factor (DAF), uneven sling load distribution (SKL factor), shift of the centre of gravity (COG factor), rotation (Yaw Factor), and the effect of using 2 cranes (Tilt Factor).

In this OJT you will learn how to analyse the strength of a structural module during lifting (Lifting Analysis) using STAAD PRO, as per DNV-ST-N001 as applied in oil & gas projects, and how to select the right slings, shackles & padeyes.

With this analysis, structural failures during lifting can be avoided because the structure has been designed as per DNV-ST-N001.

Curriculum

What you'll learn

8 modules · 29 lessons. Tap each part to see its lessons.

Module 1 Structure Model Check 4 lessons
  1. Member Group Properties
  2. Joint Connection
  3. Released Member
  4. Effective Length, Truss Member, Offset, F yield
Module 2 Define Static Lifted Weight & Center of Gravity (CoG) 3 lessons
  1. Temporary Support
  2. Contingency
  3. Load Combination for Static Lifted Weight
Module 3 Define Hook Point & Sling Member 4 lessons
  1. Hook Point modelling
  2. Define Lifting Point
  3. Sling Modelling (release member in My, Mz)
  4. Tagging Line Modelling
Module 4 Member Category 3 lessons
  1. Sling Member
  2. Member Connected to Lifting Point
  3. Member not Connected to Lifting Point
Module 5 Lifting Factor as per DNV-ST-N001 6 lessons
  1. Dynamic Amplification Factor (DAF)
  2. Skew Factor (SKL)
  3. Sequence Factor
  4. CoG Factor
  5. Yaw Factor
  6. Tilt Factor (2 crane)
Module 6 Load Combination 3 lessons
  1. Load Combination for Sling Member
  2. Load Combination for Member Connected to Lifting Point
  3. Load Combination for Member Not Connected to Lifting Point
Module 7 Analysis Report 3 lessons
  1. Member Stress Check
  2. Deflection Check
  3. Maximum Sling Load
Module 8 Lifting Gear Selection 3 lessons
  1. Sling Selection
  2. Shackle Selection
  3. Padeye Selection

How It Works

From first lesson to certificate

See the 6 learning steps

  1. Download all videos and materials from the link provided

  2. Watch all video tutorials and practise them again

  3. Complete the final project given to you

  4. Send your project file to get comments

  5. Revise it if there are correction comments.

  6. Your certificate is issued.
