Mentor: Heru Prasadja, ST

About this OJT

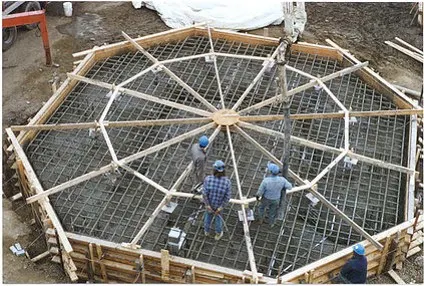

Learn straight from real projects with OJT Equipment Foundation Design For Oil Gas/Industrial Plant (AFES)

One of a Civil Engineer's tasks in oil refinery construction projects is designing the foundations for all process equipment in the plant, such as Distillation Towers, Heat Exchangers, Storage Tanks and more.

This OJT trains participants to design the 3 most common equipment foundations in an oil refinery, namely Vertical Vessel Foundations, Horizontal Vessel Foundations & Storage Tank Foundations, according to the design standards & specifications used in oil & gas projects. The design is carried out with AFES, the software commonly used in oil & gas projects.

Curriculum

What you'll learn

4 modules · 37 lessons. Tap each part to see its lessons.

Module 1 Foundation Theory 10 lessons
  1. Stability Check
  2. Overturning
  3. Sliding
  4. Upending
  5. Soil bearing
  6. Strength Check
  7. One Way Shear
  8. Two Way Shear
  9. Pier Reincforcement Bar
  10. Slab Reinforcement Bar
Module 2 Equipment Foundation Computer Modelling (AFES) 18 lessons
  1. Define Project
  2. Input Parameter
  3. Allowable Stress And Unit Weight Of Material
  4. Concrete Cover
  5. Safety Factor
  6. Soil Bearing Capacity
  7. Single Pile Capacity
  8. Input Node & Dimension
  9. Input Reinforcement Bar
  10. Define Loading
  11. Dead Load
  12. Equipment Load
  13. Wind Load
  14. Seismic Load
  15. Define Unfactored Load Combination
  16. Define Factored Load Combination
  17. Setting Anchor
  18. Pile Arrangement
Module 3 Analysis Result 6 lessons
  1. Foundation & Pile Arrangement Illustration
  2. Pile Arrangement
  3. Safety Factor Of Pile
  4. Check Of Pile Capacity
  5. Shear Strength Check
  6. Reinforcement Design
Final Project Final Project 3 lessons
  1. Foundation Design for HP Amonia Scruber 124-D (Vertical Vessel)
  2. Foundation Design for Production Separator 31-MDB-101 (Horizontal Vessel)
  3. Foundation Design for Methanol Distilation Column 6160C1

How It Works

From first lesson to certificate

See the 7 learning steps

  1. Download all videos and materials from the link provided

  2. Watch all video tutorials and practise them again

  3. Complete the final project given to you

  4. Send your project file to get comments

  5. Revise it if there are correction comments.

  6. Once the model is correct, present it as a Calculation Report in the format provided

  7. Your certificate is issued.
